High speed zinc roofing roll forming machine trapezoidal sheet making machine
Roof Panel Roll Forming Machine Description
This machinery is use for roofing panels and wall panel, it can prevent rain. The raw material enter the feeding device, and then go through the rolling stage. The rollers station is 16 stations.
The raw material thickness is 0.3-0.8mm, the feeding width can different,we can adjustable the width according to your requiment,we can customize the machine profile to you.
| Voltage | 380V or as your request |
| warraty | 12 month |
| core selling point | Long Service Life |
| feeding width | 914-1450mm |
| Roller raw material | 45# Forged Steel |
| Shaft raw material | 45# Steel Outer |
| Cutting blade raw material | Cr12 Frequency Quenching |
| cutting system | hydraulic |
| Decoiler | 5 tons |
| roller steps | 16 rollers |
| Function | roof and wall |
| Export port | Tianjin |
| Suitable material to process | Color Alu-zinc Steel Strips |
| Main frame | 350H steel |
| Keywords | Roof Panel Roll Forming Machine |
Main components of Roof Panel Roll Forming Machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| counter | 1 set |

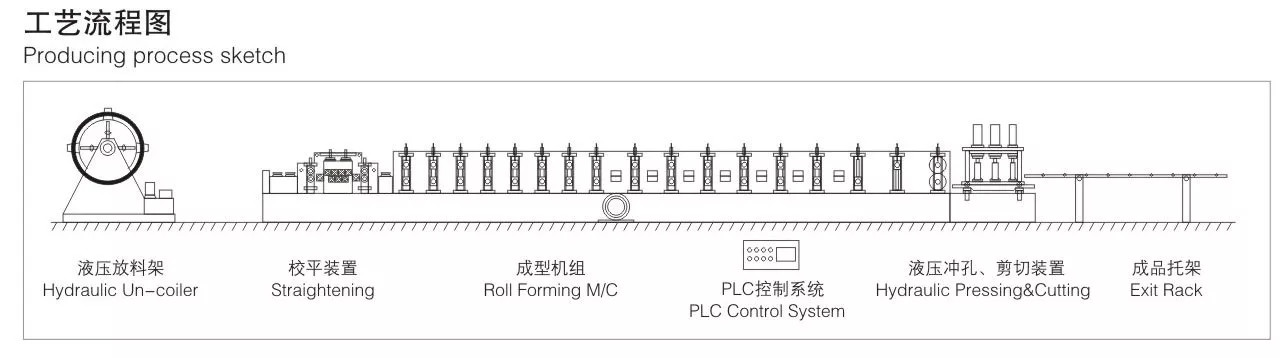

Roof Panel Roll Forming Machine Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Feature Advantage:
1. If buyer visit our factory and check the finished machine ,we can teach you how to operate the machine ,and we also can train your workers/technician face to face ,if your workers not in my factory ,we can teach them through the video.
2. If you without visit our factory ,we can send you video to teach you how to operate the machine
3. If you need our technician to go to you local factory ,you can arrange board and lodging and other necessary things.
4. Our Plc screen language can be customized ,in this case ,it can effectively save the time and energy that customer spend on training workers.
Application
This machine is widely used in the production of the roof and wall
FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Welcome to visit us!
|
|

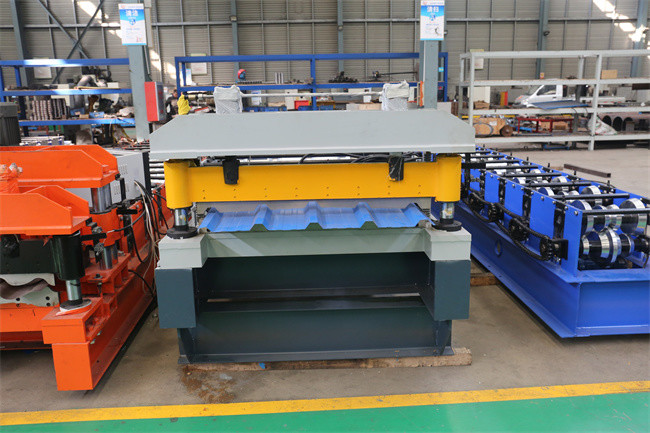

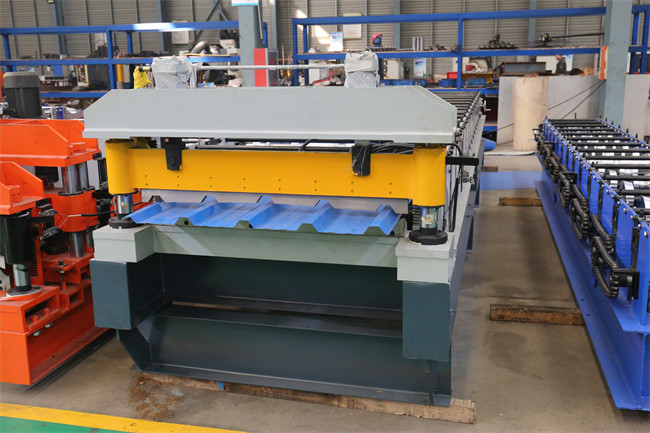

High speed zinc roofing roll forming machine trapezoidal sheet making machine Images
|
