Direct Factory Automatic Trapezoidal Metal IBR Wall Roof Panel Roll Forming Machine
1. Description Of Roof Panel Roll Forming Machine
The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, main roll forming machine, electric/ hydraulic cutting, plc control system, main motor, pump station, receving table.
Roof panel roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm.
Material common is PPGI GI, material thickness common between 0.3-0.8 mm. Roof panel roll forming machine Include: trapezoidal roofing sheet roll forming machine ,corrugated roofing roll forming machine ,glazed tile roll forming machine and double layer roofing sheet roll forming machine ,ridge cap roll forming machine.
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Roof Panel Roll Forming Machine
| Machine Specifications |
| Weight | About 5.4tons |
| Size | About 6.1M*1.3M*1.2M(length x width x height) |
| Color | Main color: bule or as your need |
| Warning color: yellow |
| Suitable Raw Material |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 13 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 4kw |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Roof Panel Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Roof Panel Roll Forming Machine
Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our Roof Panel Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. Application Of Roof Panel Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

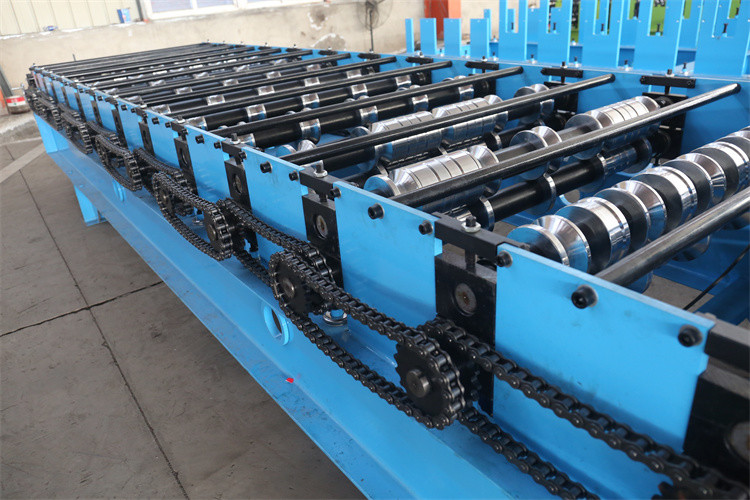

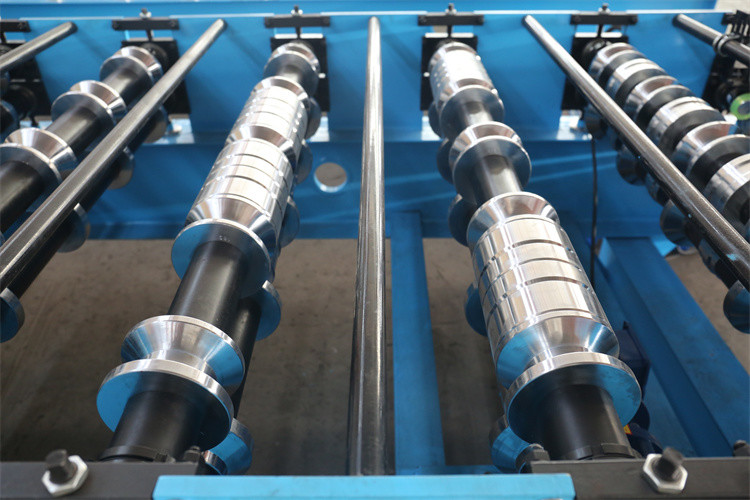

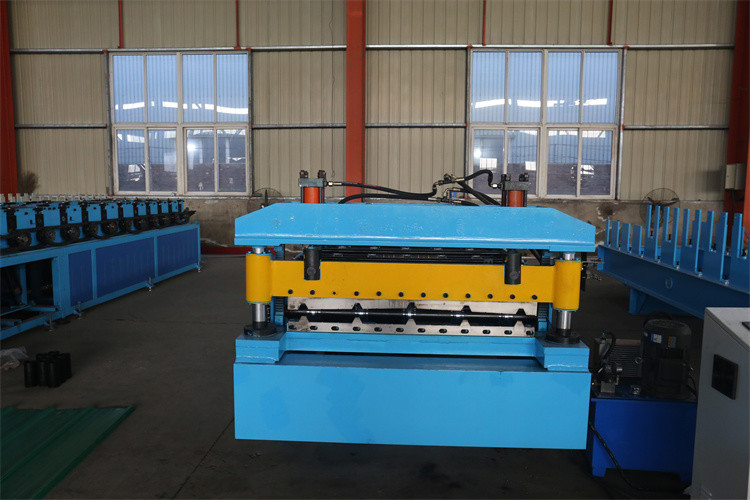

7. Product photos Our Roof Panel Roll Forming Machine
8. FAQ
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
